Capehart 32P9 Form?
Farnsworth Television & Radio Corp. - see also Capehart
- Country
- United States of America (USA)
- Manufacturer / Brand
- Farnsworth Television & Radio Corp. - see also Capehart
- Year
- 1948–1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 40033
SAMS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Tuned circuits
- 9 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.875 inch = 30.2 cm
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Capehart 32P9 Form? - Farnsworth Television & Radio
- Shape
- Console with any shape - in general
- Notes
-

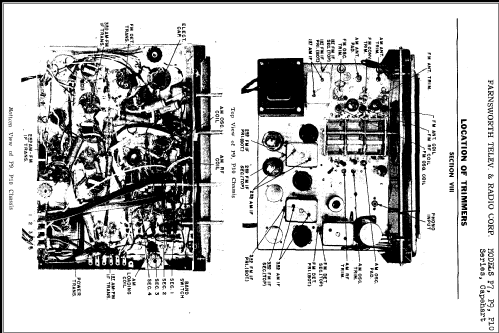

According to SAMS Photofact Folder Date 6-49, 4912-3, set 64, folder 3, the following Capehart models, made by Farnsworth Television and Radio Corp., fort Wayne, Indiana use the same chassis: 32P9, 33P9 and 34P10. The Record Changer here is a P-72 and there is a built in AM loop antenna. WE don't know yet the name of the cabinet. See here the "Common information for the Capehart model pages for the 1930s and 1940s".
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Literature/Schematics (1)

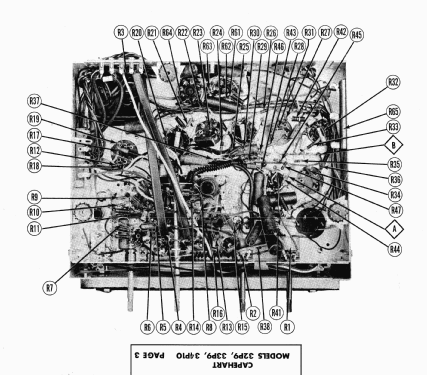

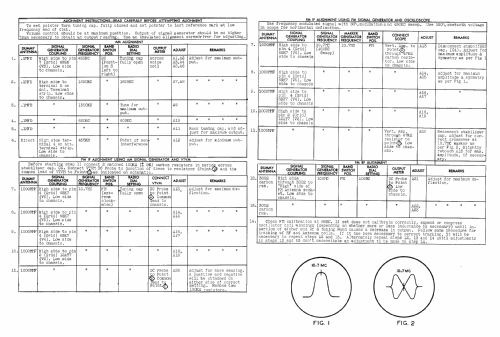

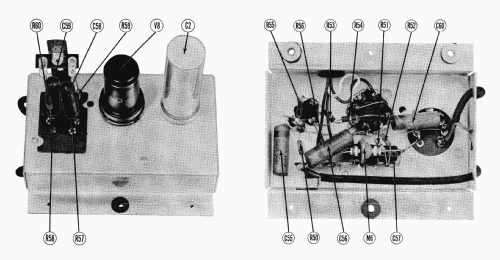

- Photofact Folder, Howard W. SAMS (Date 6-49, 4912-3, set 64, folder 3)
- Other Models
-
Here you find 400 models, 284 with images and 327 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Farnsworth Television & Radio Corp. - see also Capehart
