• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 192877

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Changer (Record changer)

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: AK-86 changer S30 - Farnsworth Television & Radio

• Shape
• Console with any shape - in general

• Notes

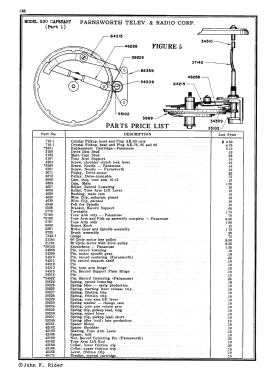

• For the record changer see also this text about Capehart Radio-Phonographs, technical information Rider's page 136 - 142 for changer S30.

• Source of data
• Pre-War Consoles

• Mentioned in
• Rider's Automatic Record Changers and Recorders (page 136-142)

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
