• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40080

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6SK7 6SA7 6J5GT 6SK7 6J5GT 6SQ7 6SF5 6V6G 6V6G 5Y3G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org

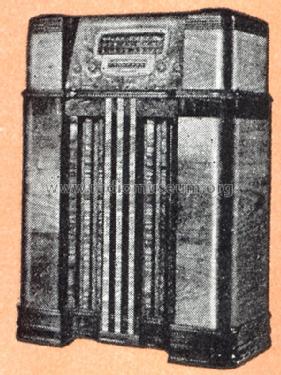

• Model: BC-102 - Farnsworth Television & Radio

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 41.625 x 30 x 14.25 inch / 1057 x 762 x 362 mm

• Notes

• Built in loop antenna. 3 wave-bands, only BC is indicated.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Pre-War Consoles
