• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40100

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6SK7 6SA7 6J5GT 6SK7 6Q7 6SC7 6SC7 6V6G 6V6G 5Y3G 5Y3G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org

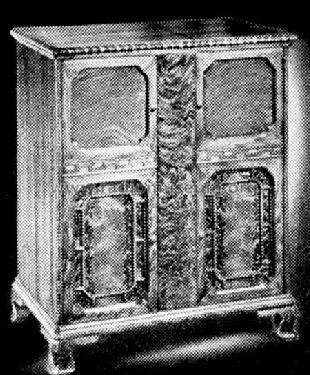

• Model: BK-112 Ch= C-32, changer P2 - Farnsworth Television & Radio

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 33 x 38.5 x 17.75 inch / 838 x 978 x 451 mm

• Notes

• For the record changer see also this text about Capehart Radio-Phonographs, technical information Rider's page 113-122 for changer P2/P3.

  Built in loop antenna. 7 push buttons.

• External source of data
• Ernst Erb

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Radio Retailing (Radio & Television R.) (January 1941.)

• Literature/Schematics (1)

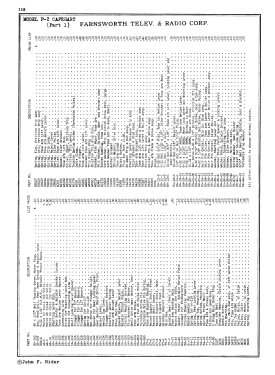

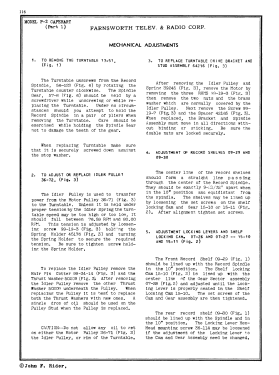

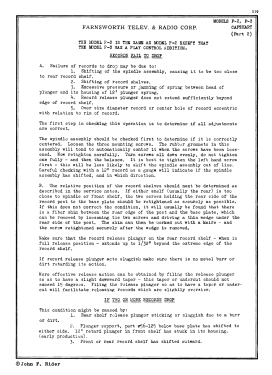

• Rider's Automatic Record Changers and Recorders (page 113-122 for changer P2/P3)

• Other Models

• Here you find 400 models, 284 with images and 327 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Farnsworth Television & Radio Corp. - see also Capehart
