• Year
  • 1954 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 145258

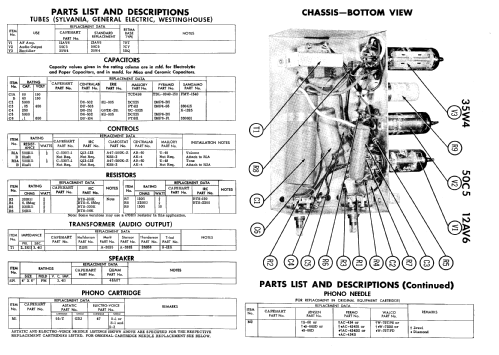

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • from Radiomuseum.org
  • Model: Capehart 23TP35BNL - Farnsworth Television & Radio
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • 4" x 6" PM elliptical speaker..
    The Farnsworth Model Capehart 23TP35BNL is an AC Operated 3 Tube Phono Amplifier with 3-Speed Automatic Record Changer.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
