• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40153

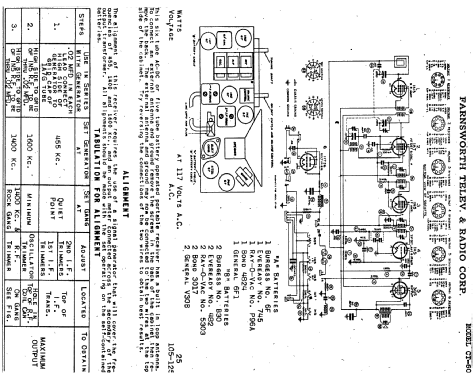

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1N5 1A7 1N5 1H5 3Q5 117Z6

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 117 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5.5 inch = 14 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

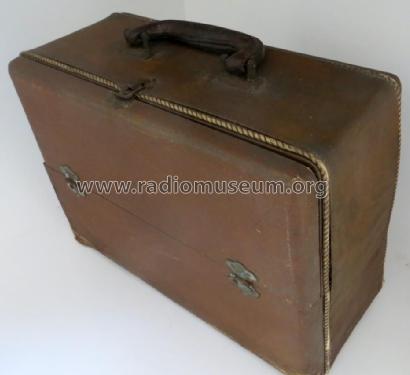

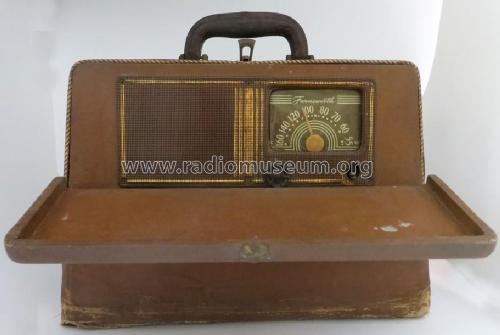

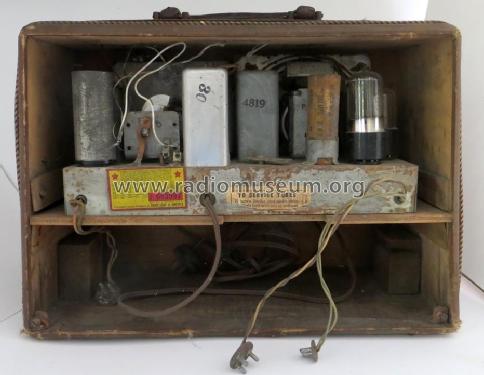

• Model: CT-60 - Farnsworth Television & Radio

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Built in loop antenna. Line supply is AC/DC.

• Price in first year of sale
• 29.95 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Radio Retailing (Radio & Television R.) (March, July 1941.)

• Other Models

• Here you find 400 models, 284 with images and 327 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
