EK-265 Ch= C-152
Farnsworth Television & Radio Corp. - see also Capehart
- Country
- United States of America (USA)
- Manufacturer / Brand
- Farnsworth Television & Radio Corp. - see also Capehart
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 40165
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: EK-265 Ch= C-152 - Farnsworth Television & Radio
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- Built in loop antenna. Sams photofact, set 7, folder 467-15, date 11-46, features the Farnsworth models EC-260, EK-262, EK-263BL, EK-263WL, EK-264BL, EK-264WL and EK-265 as the same schematic. Model EC-260 has only a radio section.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in

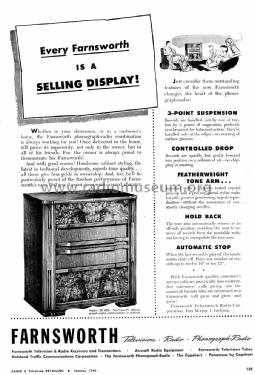

- Radio Retailing (Radio & Television R.) (January 1946 page 135. March 1946 page 36.)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 7, Folder 467-15)
