EK-081 Ch= C156
Farnsworth Television & Radio Corp. - see also Capehart
- Country
- United States of America (USA)
- Manufacturer / Brand
- Farnsworth Television & Radio Corp. - see also Capehart
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 40169

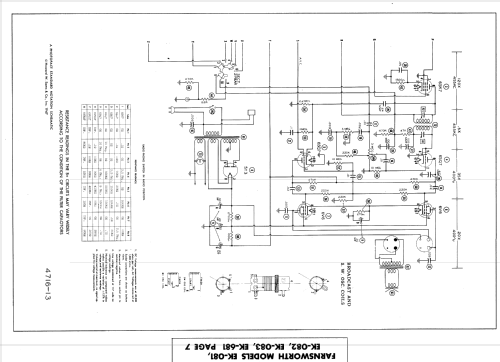

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: EK-081 Ch= C156 - Farnsworth Television & Radio
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 31.5 x 33.6875 x 16.875 inch / 800 x 856 x 429 mm
- Notes
- Built in loop antenna.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
- Mentioned in
- Radio Retailing (Radio & Television R.) (April 1946 page 37.)
- Literature/Schematics (4)
- Photofact Folder, Howard W. SAMS (Set 26, Date 10/47, Folder 4716-13)
