• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 147214

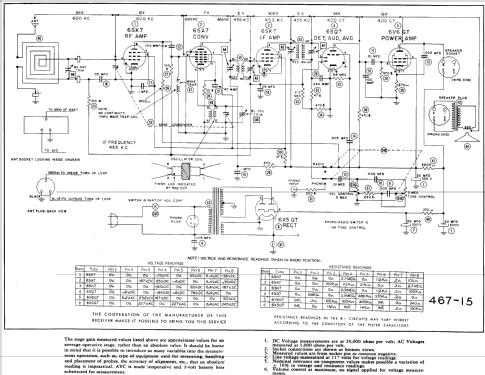

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6V6GT 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.75 inch = 24.8 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: EK-263WL - Farnsworth Television & Radio

• Shape
• Console with any shape - in general

• Notes
• The Farnsworth Model EK-263WL is an AC Operated Automatic Phono - Superheterodyne Receiver with Self Contained Loop Antenna.

• Literature/Schematics (1)

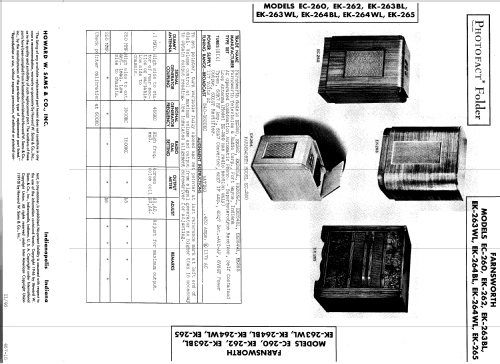

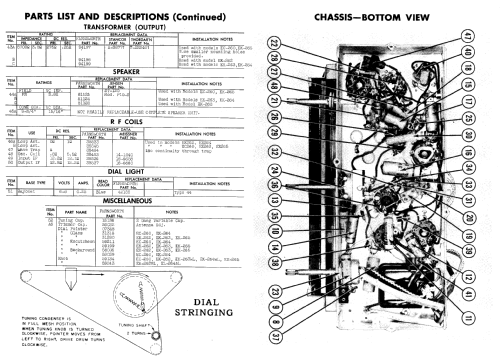

• Photofact Folder, Howard W. SAMS (Date 11-46, Set 7, Folder 467-15)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
