- Country
- United States of America (USA)
- Manufacturer / Brand
- Farnsworth Television & Radio Corp. - see also Capehart
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 147211
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.75 inch = 24.8 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: EK-264WL - Farnsworth Television & Radio
- Shape
- Console with any shape - in general
- Notes
-

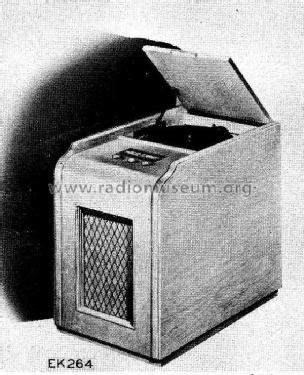

The Farnsworth Model EK-264WL is an AC Operated Automatic Phono - Superheterodyne Receiver with Self Contained Loop Antenna.
According to the "Record Retailing Yearbook 1946", page 469, the different models EK-264 have a 3-point suspension record changer, lightweight arm, sealed crystal pickup and permanent needle. Pictured are also an other "Six-tube combination" and a "8-tube combination with drift-corrected tuning, all have the same changer.
- Literature/Schematics (1)

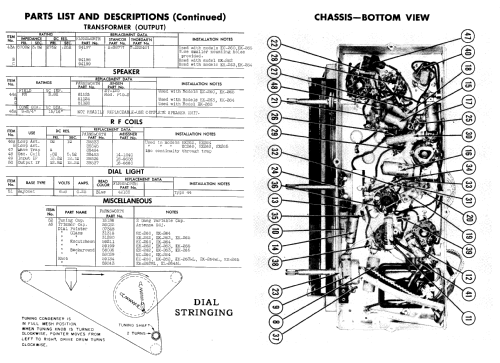

- Photofact Folder, Howard W. SAMS (Date 11-46, Set 7, Folder 467-15)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
