• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40178

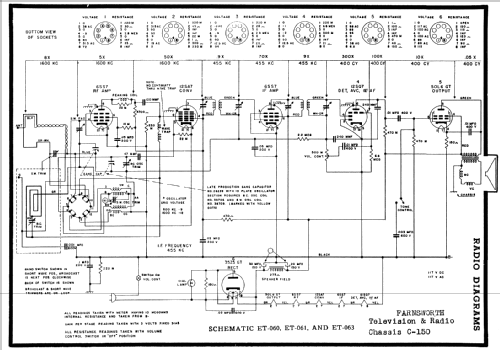

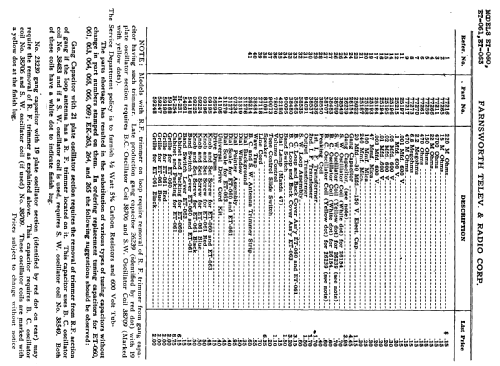

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SS7 12SA7 6SS7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4.75 inch = 12.1 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: ET-060 Ch= C-150 - Farnsworth Television & Radio

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 11.5 x 8 x 6 inch / 292 x 203 x 152 mm

• Notes
• Built in loop antenna. Has contrasting grille and tuning knobs, mahogany-plastic cabinet.

• Net weight (2.2 lb = 1 kg)
• 7.4 lb (7 lb 6.4 oz) / 3.360 kg

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Beitman Radio Diagrams, Vol. 07, 1947

• Literature/Schematics (1)

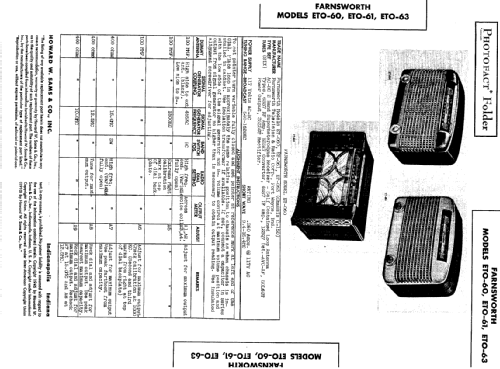

• Photofact Folder, Howard W. SAMS (Set 6, Folder 466-11)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (April 1946 page 119.)

• Other Models

• Here you find 400 models, 284 with images and 327 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
