• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40182

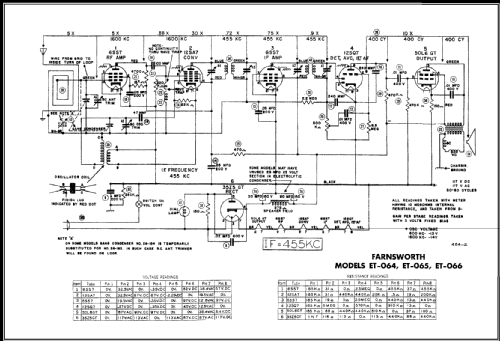

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SS7 12SA7 6SS7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4.75 inch = 12.1 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

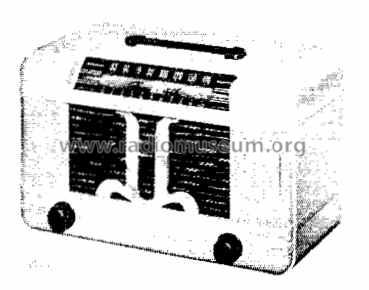

• Model: ET-65 Ch= C-158 - Farnsworth Television & Radio

• Shape
• Tablemodel, with any shape - general.

• Notes
• Built in loop antenna.

• Price in first year of sale
• 23.75 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)

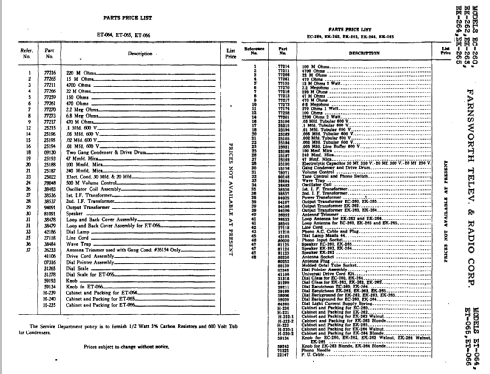

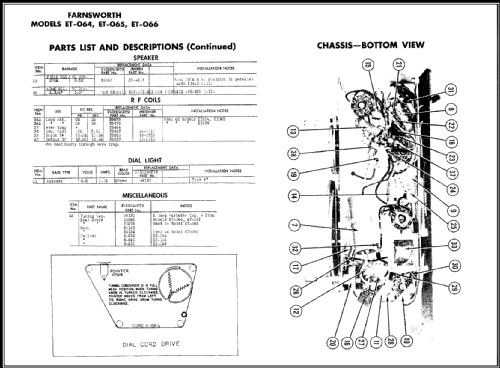

• Photofact Folder, Howard W. SAMS (Set 4, Folder 464-2)

• Literature/Schematics (2)

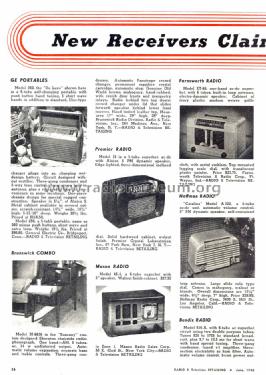

• Radio Retailing (Radio & Television R.) (June 1946 page 36.)
