GK-103 Ch= C-216
Farnsworth Television & Radio Corp. - see also Capehart
- Country
- United States of America (USA)
- Manufacturer / Brand
- Farnsworth Television & Radio Corp. - see also Capehart
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 40199
Beitman

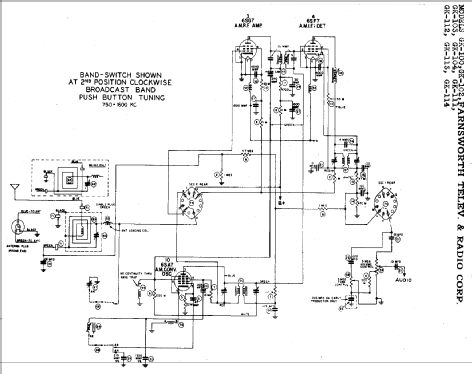

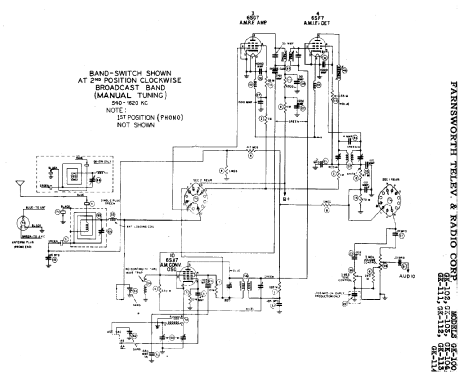

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.8 inch = 30 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: GK-103 Ch= C-216 - Farnsworth Television & Radio
- Shape
- Console with any shape - in general
- Notes
- Built in loop antenna.
Record Changer: Farnsworth Model P56.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 23, Folder 4713-8)
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 08, 1948
