- Country
- United States of America (USA)
- Manufacturer / Brand
- Farnsworth Television & Radio Corp. - see also Capehart
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 40207
Scanned from the Farnsworth Folder.
Scanned from the Farnsworth Folder.

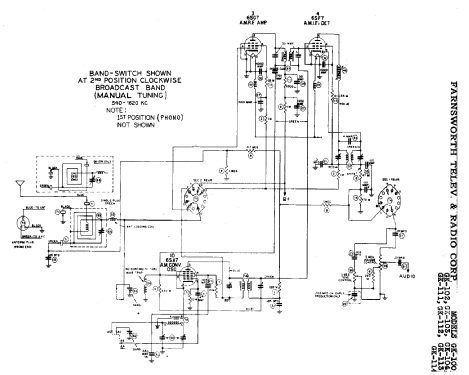

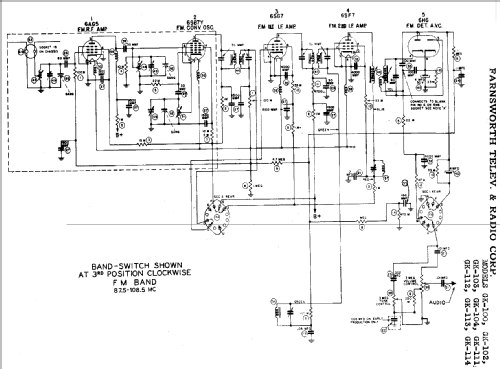

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 inch = 29.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: GK 115 - Farnsworth Television & Radio
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 34 x 36 x 18.5 inch / 864 x 914 x 470 mm
- Notes
-
Record changer P-56MP. Tunes 540 to 1620 kc and 88 to 108 mc. Two built-in antenna, shielded rotatable one for AM, plus dipole for FM.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Mentioned in
- Radio Retailing (Radio & Television R.) (September 1947 page 52.)
- Literature/Schematics (1)

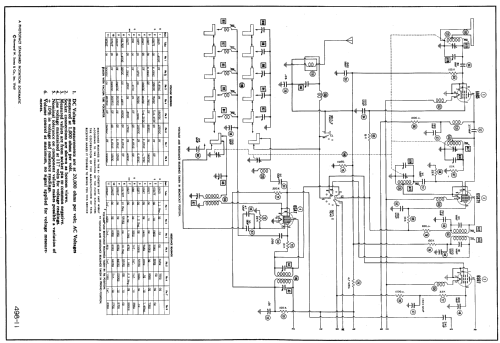

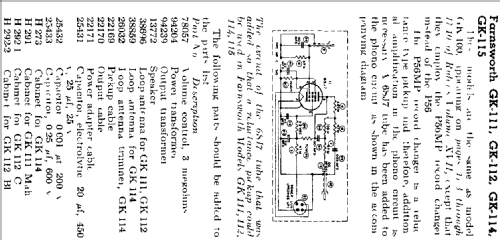

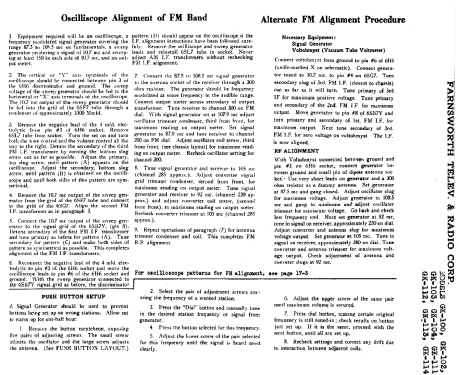

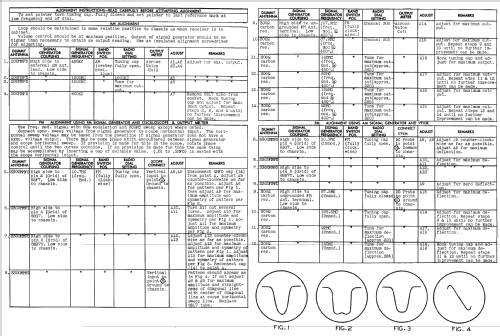

- Photofact Folder, Howard W. SAMS (Date 4-49, Set 60, Folder 11)
- Other Models
-
Here you find 400 models, 284 with images and 327 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Farnsworth Television & Radio Corp. - see also Capehart
