• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40226

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4.8 inch = 12.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

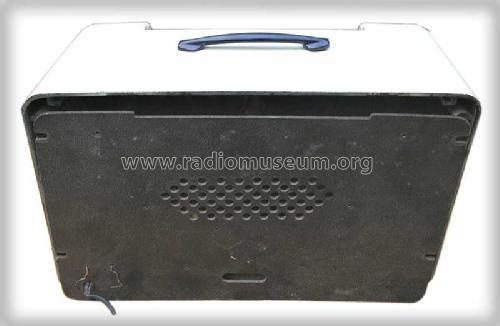

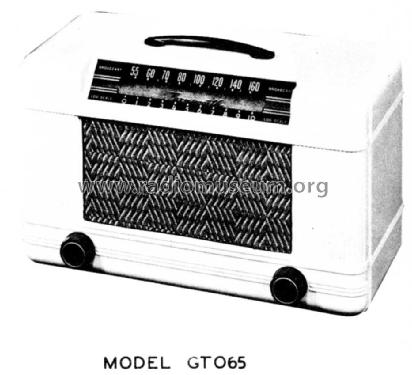

• Model: GT-065 Ch= C-158 - Farnsworth Television & Radio

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 11.5625 x 7.5625 x 5.5625 inch / 294 x 192 x 141 mm

• Notes

• Built in loop antenna. Standard broadcast band 540 to 1620 kc.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 35, Folder 6)
