• Country
• Spain

• Manufacturer / Brand
• Faro Espanola, S.A.; Barcelona

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 204844

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors
• BF314 BF195 BF195 BF197 BF194 BF194 MC160 BC149 BC147 MC160 BC148 BC158 MC810 BD226 BD227 BC148 BC158 MC810 BD226 BD227 unknown_tr TBA460 BY126 B100 AA119 SD160 E40C1000

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player + Cassette Recorder

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

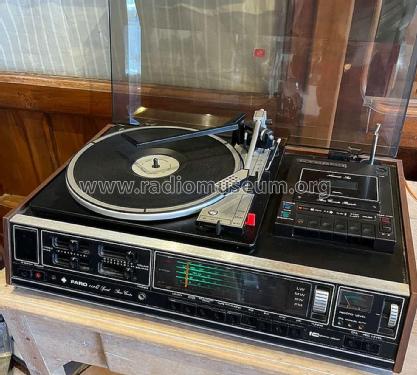

• Model: Special Stereo Center 913-Q - Faro Espanola, S.A.; Barcelona

• Shape
• Tablemodel, with any shape - general.

• Notes

• Faro Española, S.A., Special Stereo Center 913 Q (QS)

  • Anunciado como "Sonido cuadrafónico" (salida para 2 o 4 altavoces).
  • Vendido con dos cajas acústicas de 8 Ω Faro Q14.014S
  • Plato con cambiador automático
  • Grabador-reproductor de cassetes Standard-CrO2

  unknown_tr es el transistor del indicador de nivel de grabación.

• Price in first year of sale
• 41,590.00 ESP

• Mentioned in
• Anuncio La Vanguardia Española diciembre 1977

• Literature/Schematics (1)
• -- Schematic (Esquemario Magnetófonos y Cassettes REDE, Tomo IV, 1977)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
