• Country
• Italy

• Manufacturer / Brand
• Faro (Nuova Faro); Milano

• Year
• 1960 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 355783

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECL82 ECL82

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

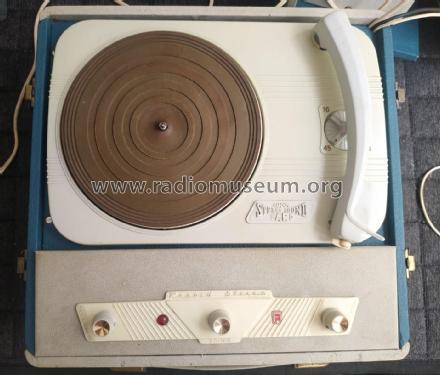

• Model: Record Stereo - Faro Nuova Faro; Milano

• Shape
• Tablemodel, with any shape - general.

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.

• Other Models

• Here you find 19 models, 19 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Faro (Nuova Faro); Milano
