• Country
• Italy

• Manufacturer / Brand
• FBT Elettronica S.P.A.; Recanati (MC)

• Year
• 1969

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 284667

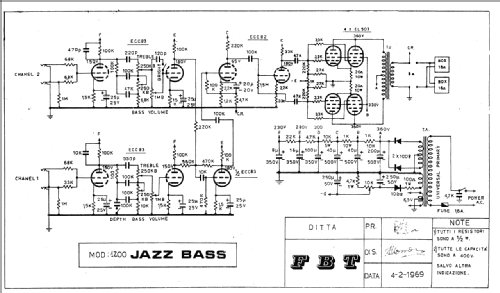

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC83 ECC83 ECC82 ECC83 EL503 EL503 EL503 EL503

• Number of Transistors

• Semiconductors
• 10D-8 10D-8 10D-8

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Guitar Amplifier

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Jazz Bass 1200 - FBT Elettronica S.P.A.;

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
