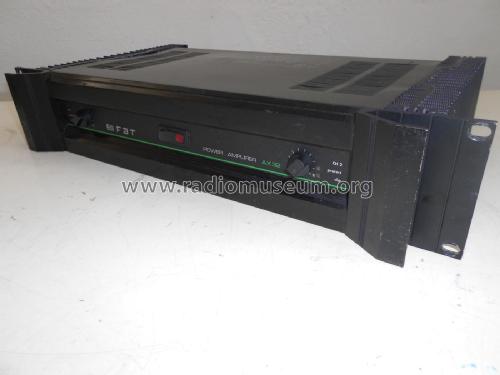

Power Amplifier AX-32
FBT Elettronica S.P.A.; Recanati (MC)
- Country
- Italy
- Manufacturer / Brand
- FBT Elettronica S.P.A.; Recanati (MC)
- Year
- 1990 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 309788
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 300 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Power Amplifier AX-32 - FBT Elettronica S.P.A.;
- Shape
- Rack
- Dimensions (WHD)
- 480 x 90 x 255 mm / 18.9 x 3.5 x 10 inch
- Notes
-

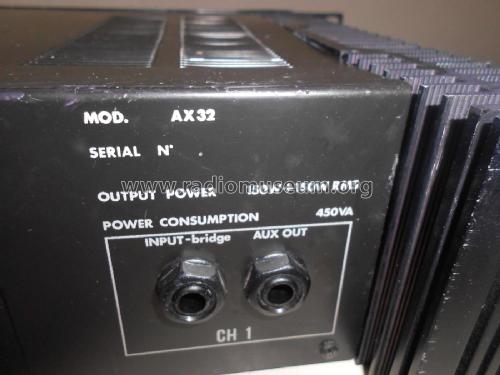

controllo volume separati L/R - led clip - protect - maniglie di trasporto - commutatore stereo/bridge - connettore Aux out - output power: 150 + 150 watt RMS - impedenza altoparlanti 4/8 Ω - fusibile di protezione 3,15 A - power consumption 450 VA.
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
