• Year
  • 1928
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 40289
    • alternative name: Federal Recorder || Federal Tel. & Radio || Federal T&T
    • Brand: Orthosonic / Ortho-Sonic

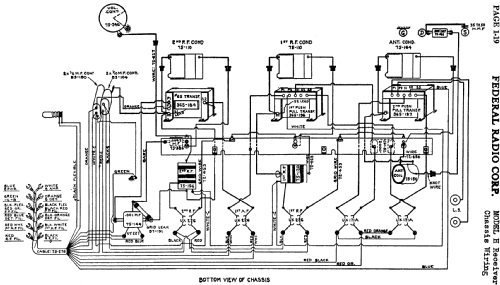

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • TRF without regeneration
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 25 Hz 110 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: H10-25 - Federal Radio Corp. / Federal
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • 25 cycle mains power.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
