• Country
• United States of America (USA)

• Manufacturer / Brand
• Federal Radio Corp. / Federal Telephone & Telegraph Co.; Buffalo, NY

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40324

• • alternative name: Federal Recorder || Federal Tel. & Radio || Federal T&T
  • Brand: Orthosonic / Ortho-Sonic

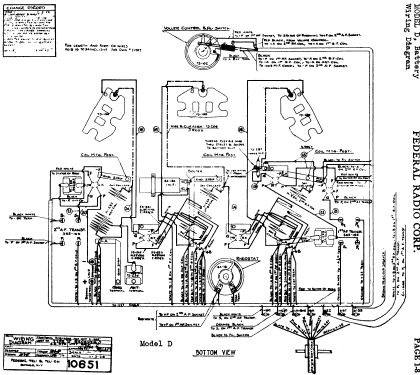

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• CX301A CX301A CX301A or CX300A or CX112A CX301A CX112A or CX371A

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Direct Current supply (DC) / 110 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: D10DC Orthosonic - Federal Radio Corp. / Federal

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes
• Matching console table D-5.

• External source of data
• Ernst Erb

• Source of data
• A Blast from the Past

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Other Models

• Here you find 205 models, 90 with images and 133 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Federal Radio Corp. / Federal Telephone & Telegraph Co.; Buffalo, NY
