- Country
- United States of America (USA)
- Manufacturer / Brand
- Federal Radio Corp. / Federal Telephone & Telegraph Co.; Buffalo, NY
- Year
- 1927
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 40367
-
- alternative name: Federal Recorder || Federal Tel. & Radio || Federal T&T
- Brand: Orthosonic / Ortho-Sonic
Ebay Item number: 130539565126
Ebay Item number: 130539565126
Ebay Item number: 130539565126
Ebay Item number: 130539565126
Ebay Item number: 130539565126
Ebay Item number: 130539565126
Ebay Item number: 130539565126
Ebay Item number: 130539565126
Ebay Item number: 130539565126
- Number of Tubes
- 8
- Valves / Tubes
- Main principle
- TRF without regeneration
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Horn
- Material
- Wooden case
- from Radiomuseum.org

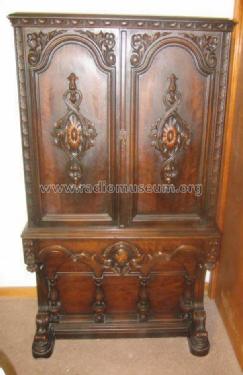

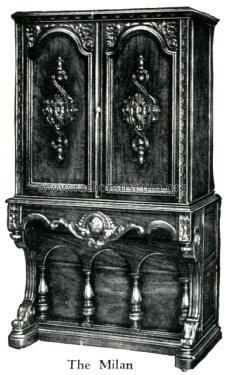

- Model: Milan 60 [AC] - Federal Radio Corp. / Federal
- Shape
- Console with any shape - in general
- Notes
-

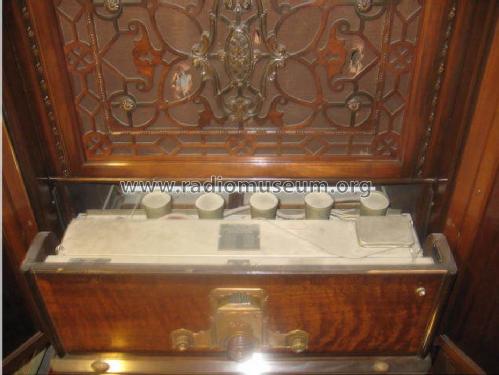

Illuminated scale. Loop concealed in door. Federal 7 ft horn. Custom built cabinet of genuine walnut and maple finished in deep brown.All decorations hand carved and raised. Splendid example of Italian renaissance. F-series chassis?
- Price in first year of sale
- 1,225.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- A Blast from the Past
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (ad June 1927 page 236)
- Other Models
-
Here you find 205 models, 90 with images and 133 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Federal Radio Corp. / Federal Telephone & Telegraph Co.; Buffalo, NY
Collections
The model Milan 60 is part of the collections of the following members.
