- Country
- United States of America (USA)
- Manufacturer / Brand
- Federated Purchaser, Inc. (Acratone, Acratest); New York City (NY)
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 40433

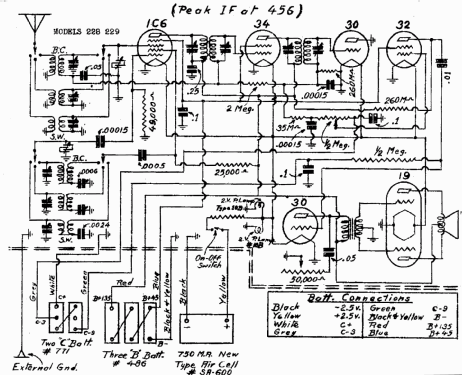

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 2.25 & 45 & 135 & -3 & -9 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- from Radiomuseum.org
- Model: 229 - Federated Purchaser, Inc.
- Notes
-
Federated catalog says "For use in Europe, 17-51, 175-550, 850-2000 Meters."
- Price in first year of sale
- 31.50 USD
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Literature/Schematics (1)
- 1935 Federated Purchaser catalog page 10.
