Regulated Power Supply

Feedback Instruments Limited; Crowborough

Data
Forum
Pictures
Collections

  • Year
  • 1964 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 345466

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 50-60 Hz: 100-120; 200-240 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Regulated Power Supply - Feedback Instruments Limited;
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • Regulated Power Supply

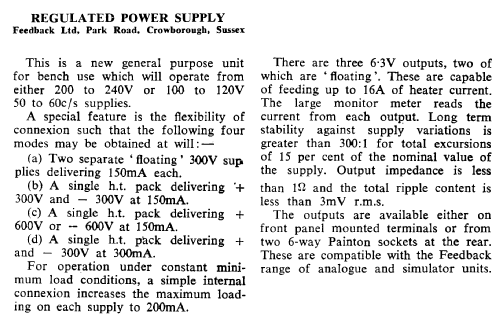

    This is a general-purpose unit for bench use with a special feature that is the flexibility of connexion such that the following four modes may be obtained:

    1. Two separate 'floating' 300V supplies delivering 150 mA each.
    2. A single h.t- pack delivering + 300V and - 300 V at 150 mA.
    3. A single h.t. pack delivering + 600 or - 600 V at 150 mA.
    4. A single h.t. pack delivering + and - 300 V at 300 mA.

    There are three 6.3 V outputs, two of which are 'floating'. These are capable of up to 16 A of heater current.
    The large monitor reads the current for each output.

    More information is availble in the uploaded specifications.
