- Country
- Germany
- Manufacturer / Brand
- Feinwerktechnik Leipzig, VEB; Leipzig (Ostd.)
- Year
- 1973 ??
- Category
- Teaching aids-material
- Radiomuseum.org ID
- 324906
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

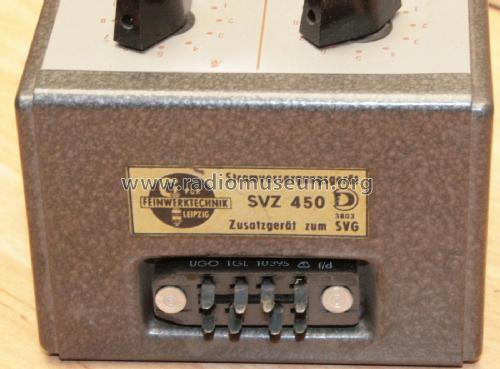

- Model: SVZ 450 - Feinwerktechnik Leipzig, VEB;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 103 x 90 x 108 mm / 4.1 x 3.5 x 4.3 inch
- Notes
-

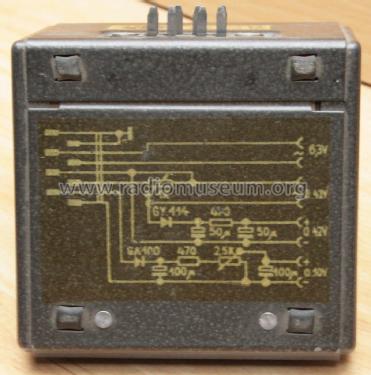

Stromversorguns-Zusatz-Gerät zum Schüler-Stromversorgungsgerät SVG.
Bereitstellung von 6,3 V Heizspannung, Anodenspannung 0-42 V, Wechselspannung 0-42 V sowie 0-10 V Gitterspannung.Nachfolger des SVZ 363.
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Author
- Model page created by Uwe Friedl. See "Data change" for further contributors.
