• Country
• United States of America (USA)

• Manufacturer / Brand
• Fender Electric Instrument Co.; Fullerton (CA)

• Year
• 1960 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 220936

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7A 12AX7A 6V6GTA 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Guitar Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Power out
• 10 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

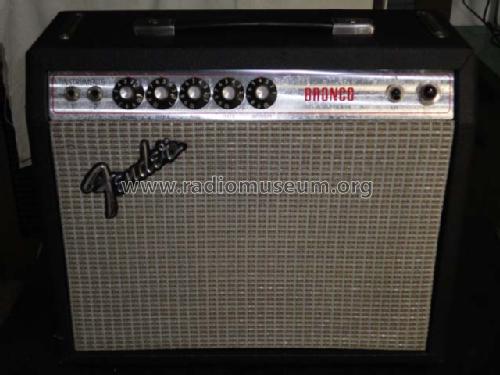

• Model: Bronco Studio Guitar Amplifier AB764 - Fender Electric Instrument Co.

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 435 x 340 x 190 mm / 17.1 x 13.4 x 7.5 inch

• Notes
• Amplificatore per chitarra elettrica.
  Studio guitar amplifier.

• Net weight (2.2 lb = 1 kg)
• 9.8 kg / 21 lb 9.4 oz (21.586 lb)
