Guitar Amplifier AA764
Fender Electric Instrument Co.; Fullerton (CA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fender Electric Instrument Co.; Fullerton (CA)
- Year
- 1970 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 345138
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Guitar Amplifier AA764 - Fender Electric Instrument Co.
- Notes
-
Two guitar inputs. Treble and Bass tone controls.
Fender Bronco Studio Guitar Amplifier AB764 is the next version that adds a Vibrato Pedal input, which requires an additional 12AX7 tube.
- Mentioned in

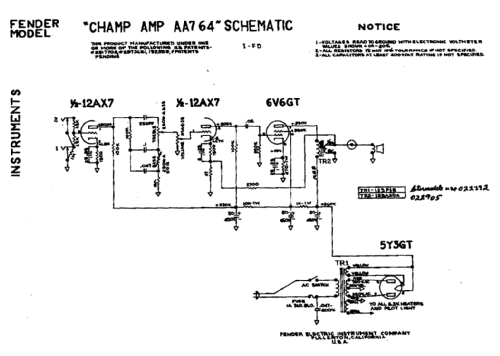

- -- Schematic (Original schematic from producer.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
