• Country
• United States of America (USA)

• Manufacturer / Brand
• Fender Electric Instrument Co.; Fullerton (CA)

• Year
• 1981

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 252161

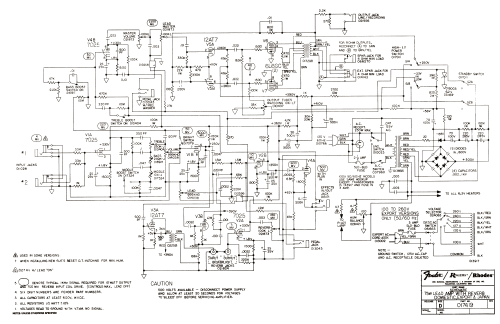

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 7025 7025 12AT7 7025 12AT7 6L6GC 6L6GC

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Guitar Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 100-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 75 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

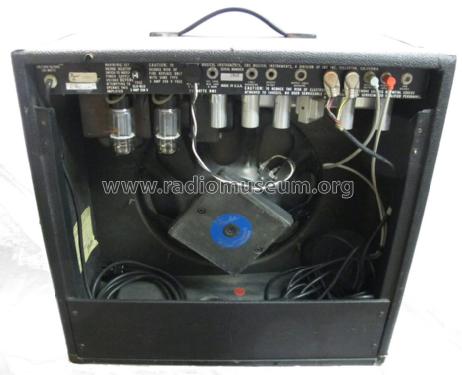

• Model: Lead Amplifier with Reverb 75 - Fender Electric Instrument Co.

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 565 x 590 x 270 mm / 22.2 x 23.2 x 10.6 inch

• Net weight (2.2 lb = 1 kg)
• 29 kg / 63 lb 14 oz (63.877 lb)

• Author
• Model page created by Jörg Sigg. See "Data change" for further contributors.
