• Country
• United States of America (USA)

• Manufacturer / Brand
• Fender Electric Instrument Co.; Fullerton (CA)

• Year
• 1952 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 111688

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SC7 6SC7 6SC7 6L6G 6L6G 5U4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• from Radiomuseum.org
• Model: Super 5C4 - Fender Electric Instrument Co.

• Notes

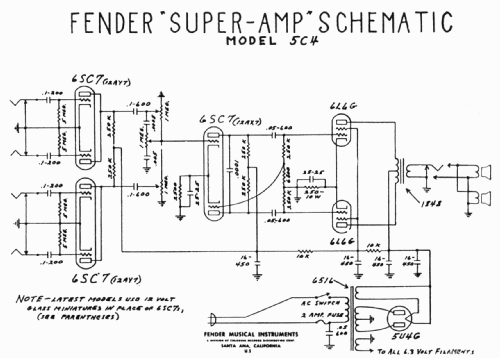

• Guitar amplifier, 4 Inputs. Later models use 12AX7 in place of 6SC7 (s. note on the schematic).

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
