• Country
• United States of America (USA)

• Manufacturer / Brand
• Fender Electric Instrument Co.; Fullerton (CA)

• Year
• 1963–1967 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 344227

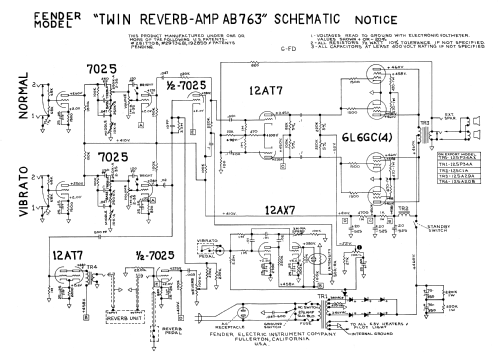

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 7025 7025 12AT7 7025 12AX7 12AT7 6L6GC 6L6GC 6L6GC 6L6GC

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 12 inch = 30.5 cm

• Power out
• 85 W (max.)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Twin Reverb - Amp AB763 - Fender Electric Instrument Co.

• Shape
• Console with any shape - in general

• Author
• Model page created by David Erali. See "Data change" for further contributors.
