Kaleva 38 S17A
Fenno, Helsinki - see also Philips
- Country
- Finland
- Manufacturer / Brand
- Fenno, Helsinki - see also Philips
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 250538

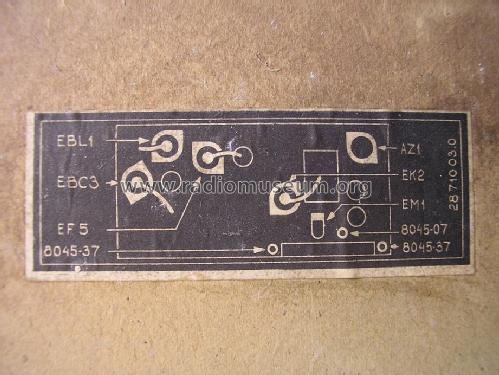

Bild aus dem Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Kaleva 38 S17A - Fenno, Helsinki - see also
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 563 x 350 x 255 mm / 22.2 x 13.8 x 10 inch
- Notes
-
Dial lamps: 2x 8045-37.
According to the type plate, the chassis was manufactured by Philips in Eindhoven.
See also Siera model S17A.
- Author
- Model page created by Timo Rantasaari. See "Data change" for further contributors.
