Sampo-TV-39 S50HU
Fenno, Helsinki - see also Philips
- Country
- Finland
- Manufacturer / Brand
- Fenno, Helsinki - see also Philips
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 228352
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); 1 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)

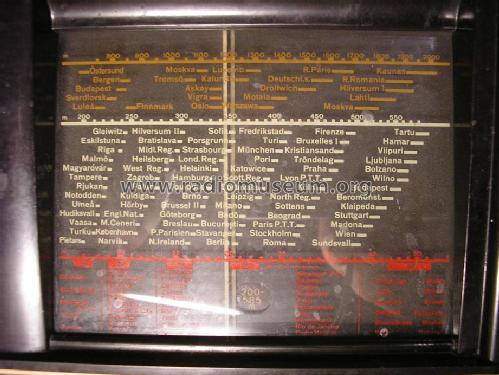

- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-130; 200-225 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Sampo-TV-39 S50HU - Fenno, Helsinki - see also

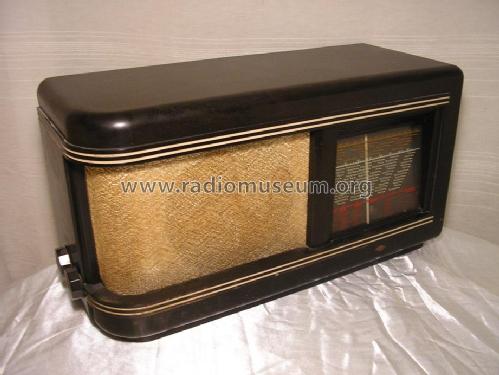

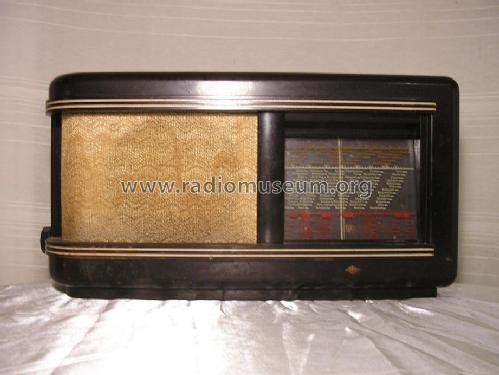

- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 487 x 265 x 190 mm / 19.2 x 10.4 x 7.5 inch
- Notes
-

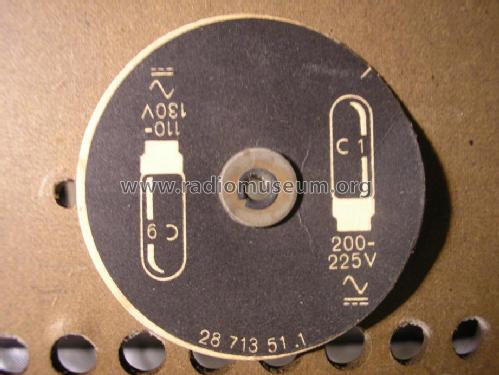

For a mains voltage of 200-225 V current regulator C1 is used, for voltages of 110-130 V C9 is used.
- Author
- Model page created by Timo Rantasaari. See "Data change" for further contributors.
