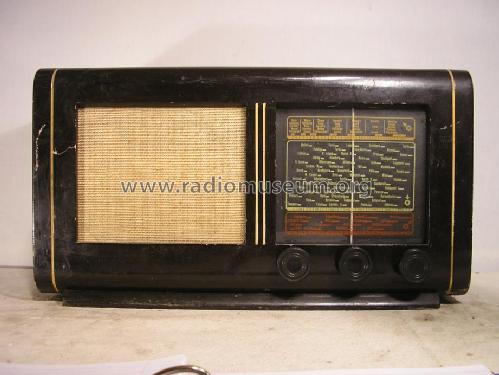

Sointu V-42 186
Fenno, Helsinki - see also Philips
- Country
- Finland
- Manufacturer / Brand
- Fenno, Helsinki - see also Philips
- Year
- 1942 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 226321
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sointu V-42 186 - Fenno, Helsinki - see also
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 525 x 290 x 180 mm / 20.7 x 11.4 x 7.1 inch
- Notes
-

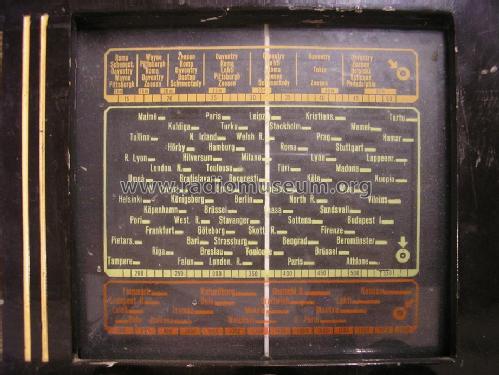

Dial lamps: 2x 6,3V / 0,3A
- Author
- Model page created by Timo Rantasaari. See "Data change" for further contributors.
