- Country
- Spain
- Manufacturer / Brand
- Fercu, Farco Ethisa (Farco Electrónica y Televisión Hispano Italiana S. A.); Madrid
- Year
- 1966 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 295850

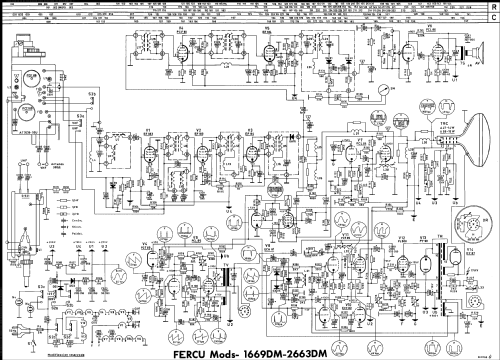

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- PCC189 PCF86 EF183 EF183 EF184 PCF80 EF184 PCL86 PCL84 ECH81 PCL85 PCF80 ECC82 PL500 PY88 DY87 A47-14W
- Number of Transistors
- Semiconductors present.
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Fercu 1669-DM - Fercu, Farco Ethisa Farco
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Fercu, 1669-DM
Televisor B/N de 19"
Selector rotativo de VHF modelo AT7639-90U
Sintonizador UHF modelo D921 transistorizado
- Mentioned in
- Esquemario TV REDE, Tomo III, 1967
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
