• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79375

• • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UCH81 UBF80 UCL83

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands

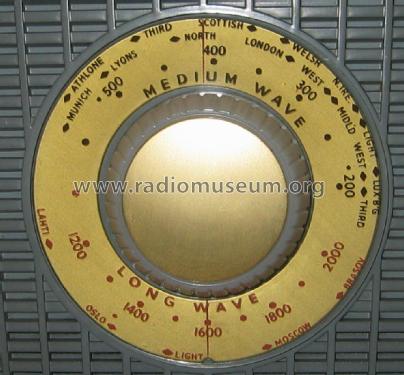

• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (unknown quality)

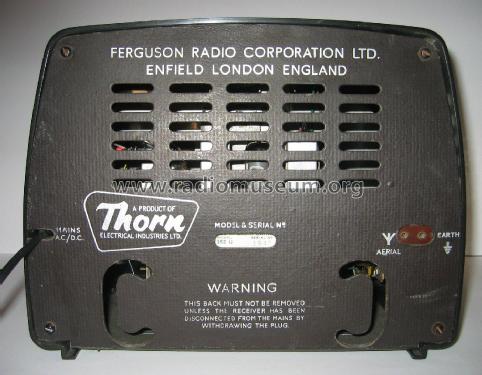

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 352U - Ferguson Brand, Ferguson Radio

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 9.5 x 5.5 inch / 305 x 241 x 140 mm

• Notes
• Elliptical loudspeaker 6 x 4 inch. Metal rectifier.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• - - Manufacturers Literature

• Literature/Schematics (2)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
