• Year
  • 1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 79373
    • Brand: TRF

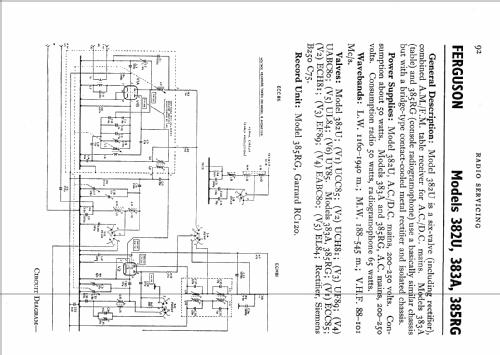

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Fleur-de-Lis 383A - Ferguson Brand, Ferguson Radio
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 18 x 13.5 x 7 inch / 457 x 343 x 178 mm
  • Notes

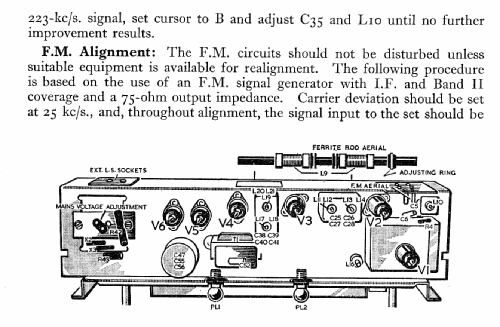

  • Internal FM and rotatable ferrite rod aerials . FM 88-101 MHz Loudspeaker 3 ohms Selenium bridge rectifier Double-wound mains transformer, but 0.02uF capacitor from mains to chassis.
