- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 196437
-
- Brand: TRF

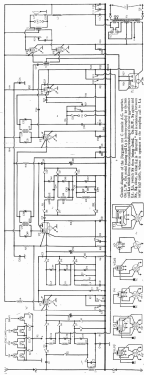

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 50-100 Hz, 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 201C - Ferguson Brand, Ferguson Radio
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Ferguson 201C is a 6-valve 3-band, superhet with RF stage, tuning indicator, and push-pull output.
Release Date May 1947; £39 18s plus £8 11s 7d p.t.
The same chassis is used in 201RG radiogram with slight modifications.
- Price in first year of sale
- 48.48 GB £
- Mentioned in
- -- Original prospect or advert (Wireless & Electrical Trader Jul 26, 1947)
- Literature/Schematics (1)
- Trader sheet 821
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
