Table Radio Gramophone 213RG
Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 102989
-
- Brand: TRF
eBay item number:251286239126
eBay item number:251286239126
eBay item number:251286239126
eBay item number:251286239126
eBay item number:251286239126
eBay item number:251286239126
eBay item number:251286239126
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-130; 200-250 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 6.5 inch = 16.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Table Radio Gramophone 213RG - Ferguson Brand, Ferguson Radio
- Dimensions (WHD)
- 450 x 300 x 350 mm / 17.7 x 11.8 x 13.8 inch
- Notes
-

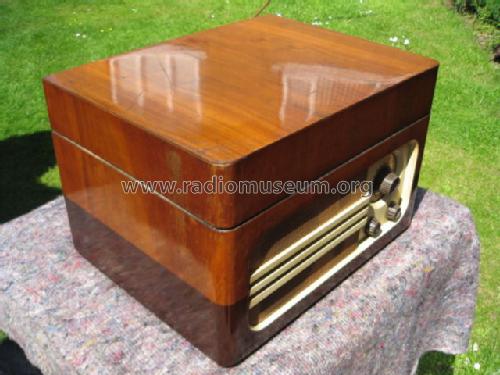

Controls on the left is the on/off volume control, on the right is the wave band control and in the centre is the tuning control, under the lid is the control for changing from radio to gram. The record deck is a Garrard single play 78 rpm only which will auto stop at the end of the record.
Chassis similar to Ferguson 203U.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
