• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1967 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 180887

• • Brand: TRF

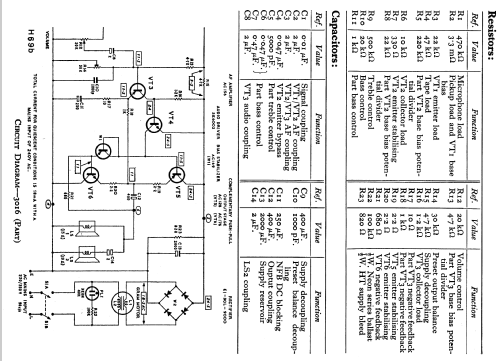

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• U3540/1 AF156 AC156 SE6002 AC169 AC128 AC176

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 3016 - Ferguson Brand, Ferguson Radio

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16.75 x 8.25 x 17.75 inch / 425 x 210 x 451 mm

• Notes

• An AC mains powered table record reproducer with a seven transistor amplifier, two loudspeakers and a four speed Garrard type 3000LM record changer with Sonotone 9TA low mass stereo cartridge. Input socket for microphone. Sockets for stereo output and output to tape recorder.

  Loudspeakers: 8" x 5" elliptical, speech coil impedance 15 ohms & 2½" round, speech coil impedance 10 ohms.

  Record player stand: Type SF37 (optional extra).

• Source of data
• -- Schematic

• Literature/Schematics (1)
• - - Manufacturers Literature (Ferguson Service Manual.)

• Literature/Schematics (2)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
