- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103095
-
- Brand: TRF
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 475 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.6 W (max.)
- from Radiomuseum.org
- Model: Freeway 3100 - Ferguson Brand, Ferguson Radio
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
35Ω elliptical loudspeaker 7 x 3⅝ inch. Sockets for car aerial and connection to a tape recorder.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- - - Manufacturers Literature
- Literature/Schematics (2)

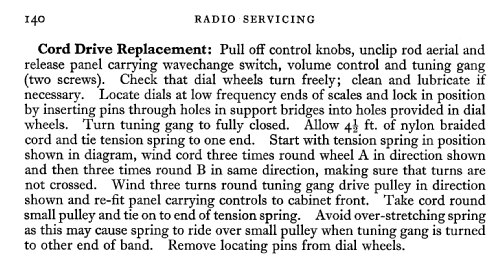

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1659 dated 4 July 1964)
- Literature/Schematics (3)
- ERT Service Chart 1377 dated February 28 1963
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
