- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103104
-
- Brand: TRF
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 475/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 2 × 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1.1 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

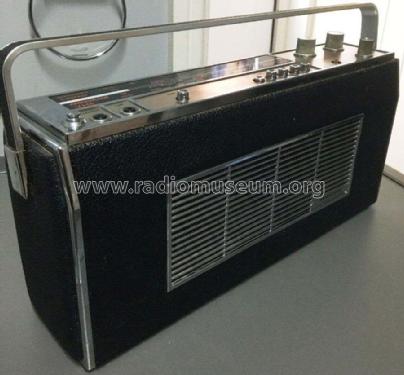

- Model: 3152 - Ferguson Brand, Ferguson Radio
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Elliptical loudspeaker 6 x 4 inch.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
