• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 226559

• • Brand: TRF

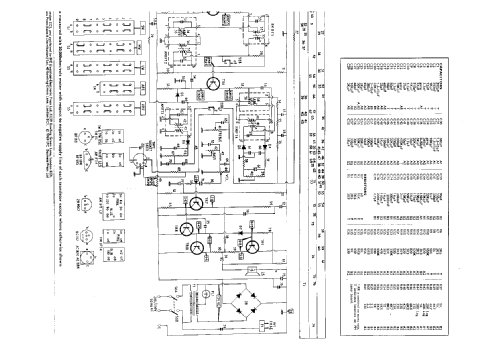

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF160 BF160 BF195 BF194 BF194 BF195 2N4062 BC152 AC187 AC188

• Main principle
• Superheterodyne (common); ZF/IF 475/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Futura II 3166 - Ferguson Brand, Ferguson Radio

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 22.5 x 5.8 x 9.75 inch / 572 x 147 x 248 mm

• Notes

• Transistorised successor to the 1958 Futura Model 388A

• External source of data
• ERT Service Chart 1710

• Author
• Model page created by Ernst Röggla. See "Data change" for further contributors.
