- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Year
- 1968 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 226351
-
- Brand: TRF
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 475/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.25 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

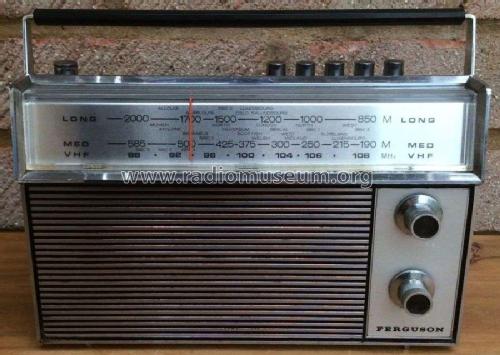

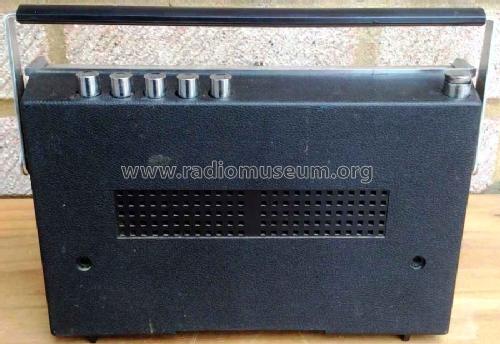

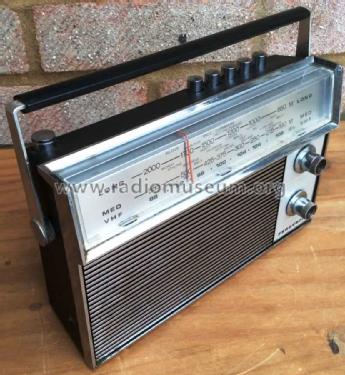

- Model: 3167 - Ferguson Brand, Ferguson Radio
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Socket for earphone. Eliptical loudspeaker 4.75 x 2.75 inch.
- Literature/Schematics (1)
- ERT Service Chart 1702
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
