• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1971 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 226357

• • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA201 2SA201 2SA202 2SA203 2SB185 2SB186 2SB22 2SB22

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

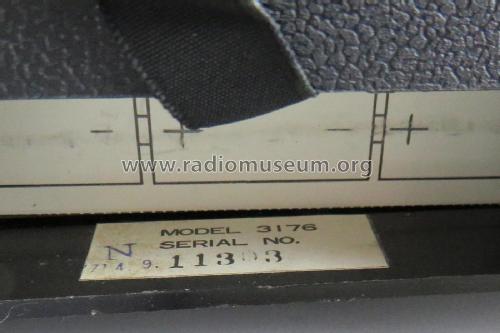

• Model: 3176 - Ferguson Brand, Ferguson Radio

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 8 x 4.5 x 2 inch / 203 x 114 x 51 mm

• Notes

• With carry case. Socket for earphone or tape recorder.

• Price in first year of sale
• 12.00 GBP

• Literature/Schematics (1)
• ERT Service Chart 1847

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
