• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1964

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 174169

• • Brand: TRF

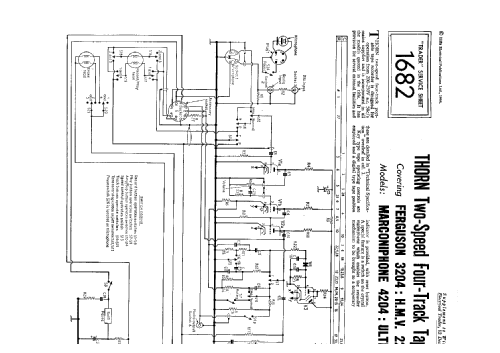

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 ECL86 EM87

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 3204 - Ferguson Brand, Ferguson Radio

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 14.5 x 12.75 x 7.25 inch / 368 x 324 x 184 mm

• Notes

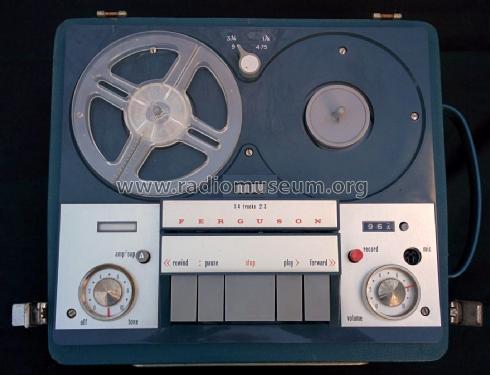

• A portable tape recorder. 2 speed (1⅞ and 3¾ ips), 4 track, max spool size 5¾ inches. Tape deck type Thorn DB42. Input sockets for microphone, radio and pick-up, output sockets for radio and 3Ω extension loudspeaker. Also an accessory socket providing connection to auxiliary units to enable the recorder to playback stereo tapes, for slide projector synchronisation, voice operated start/stop and soundtrack dubbing.  Released in 1964, price 33 guineas.

  Similar to models HMV 2204B, Marconiphone 4204, and Ultra 6202.

  Marketed in Australia by Thorn Electrical Industries (Aust.) Pty Ltd during 1964/1965 & retailed for £68/5/-.

• Price in first year of sale
• 34.65 GBP

• Source of data
• -- Other type before this -same/similar characteristics - see exchange.

• Mentioned in
• Radio And Television Servicing books (R&TVS)

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1682 dated 12 December 1964)

• Literature/Schematics (2)
• - - Manufacturers Literature (Ferguson Service Manual.)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
