- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 146613
-
- Brand: TRF
Bild aus Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 3 Loudspeakers
- from Radiomuseum.org

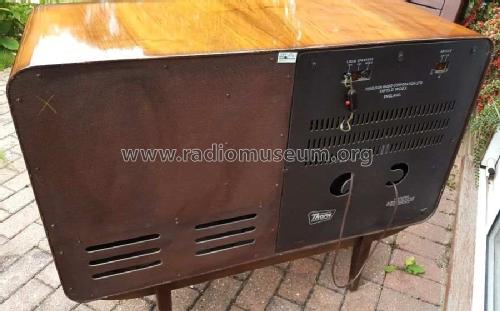

- Model: 377RG - Ferguson Brand, Ferguson Radio
- Dimensions (WHD)
- 40.5 x 32.5 x 15.5 inch / 1029 x 826 x 394 mm
- Notes
- Auto-radiogram fitted with Collaro RC456 or Garrard RC120H/4 4 speed changer, crystal turn over pick-up. Speakers LF 10 inch, MF 6x8 inch, HF 4 inch.
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
