- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Year
- 1957
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 235972
-
- Brand: TRF
From Trader 1349
- Number of Tubes
- 16
- Valves / Tubes
- PCC84 PCF80 EF80 PCF80 PCF80 EB91 PCF80 PL81 EY86 PY81 EF80 EBF89 ECL80 PCL82 PY32 AW36-80
- Main principle
- Superheterodyne (common); ZF/IF 38150/34650 kHz; 2 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 200 - 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 454T - Ferguson Brand, Ferguson Radio
- Shape
- Tablemodel, with any shape - general.
- Notes
-
UK 405 Line System A, VHF Band I and Band III

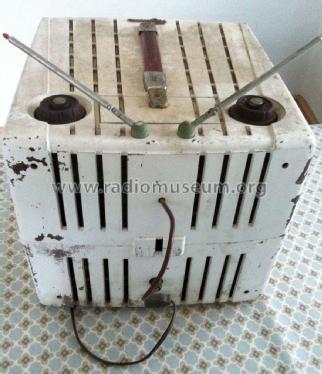

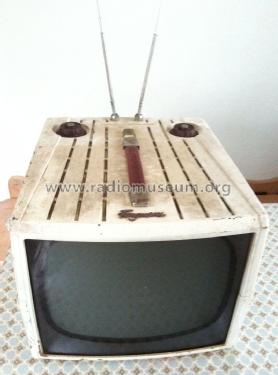

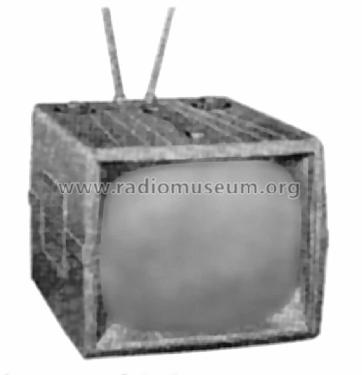

Transportable style with 14" mono CRT.with pair of integral telescopic "whip" aerials.extending to 1.2m with 7 sections..
Two Germanium diodes (OA70, OA71) and two GEC V3/1/1Y diodes (Flywheel sync).
For 200V DC or when DC doesn't give full size scan the V15 rectifier can be shorted.
As the chassis can be live the two resistors and three capacitors on the aerial socket are critical to safety.
There were quite a few component changes during production. The HMV 1864 is the same chassis as HMV/EMI Radio/TV by then part of Thorn/Ferguson.
- Price in first year of sale
- 42.60 GBP
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1349/T151)
- Author
- Model page created by Michael Watterson. See "Data change" for further contributors.
