• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196487

• • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 76 6D6 6A7 6D6 75 6G5 76 42 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: 503RGT - Ferguson Brand, Ferguson Radio

• Notes
• Same as the Ferguson 503RG radiogram but with SW bands 16-50m and 75-175m.

• Literature/Schematics (1)

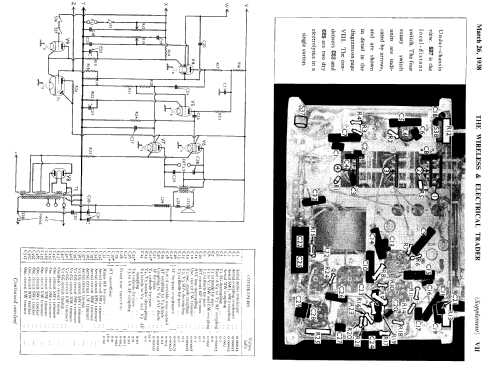

• Trader sheet 302

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
