• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103089

• • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

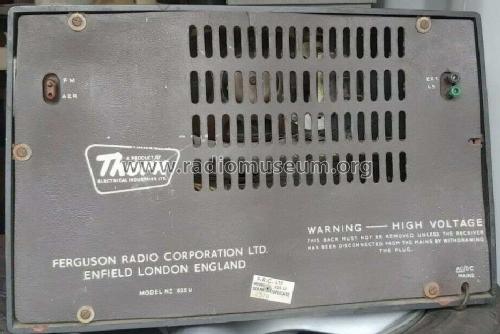

• Model: 625U - Ferguson Brand, Ferguson Radio

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16.5 x 10.5 x 7 inch / 419 x 267 x 178 mm

• Notes

• Table top AM/FM radio with 2W valve amplifier Model Ferguson 625U

  Type: Mono Radio
  Tuning Bands: FM, MW, LW
  Tuning Scale: Analogue
  Tuning Range:
  FM 88 to 100 MHz
  MW 545 to 1594 kHz
  LW 156 to 272 kHz
  Loudspeaker: Permanent magnet type, 8 x 5 inches elliptical (3 Ω)


• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
