• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103090

• • Brand: TRF

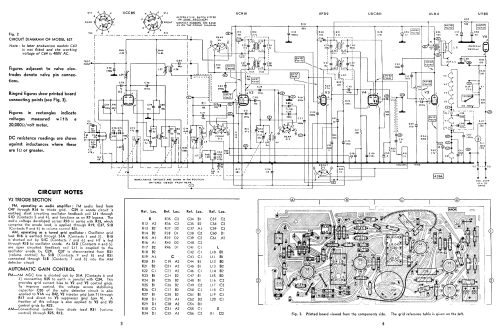

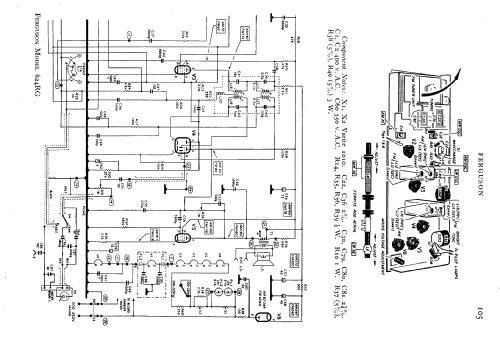

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 627U - Ferguson Brand, Ferguson Radio

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 19.75 x 14.25 x 8 inch / 502 x 362 x 203 mm

• Notes

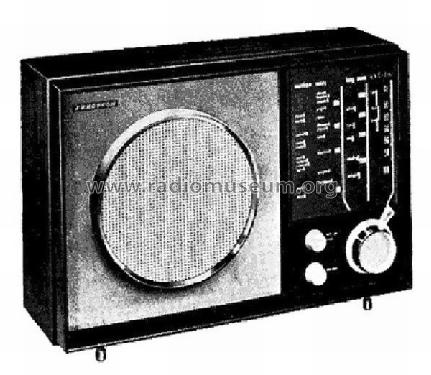

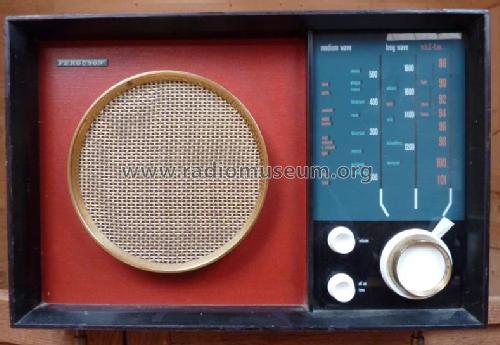

• Ferguson 3-Band Table Radio Model 627U.
  FM Tuning Range: 87.2 to 101 MHz
  MW Tuning Range: 545 to 1594 kHz
  LW Tuning Range: 156 to 272 kHz
  Tuning Scale: Analogue

• Mentioned in

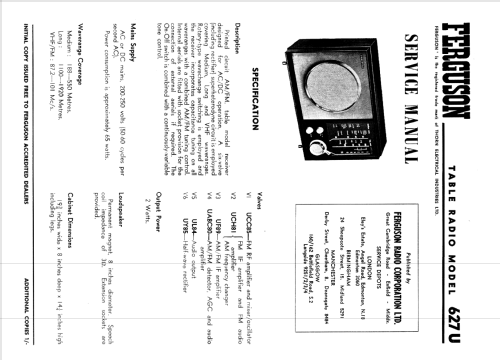

• -- Original-techn. papers. (Service Manual)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
